Technology that connects the world with 3D vision and emotions, Robowink

Robot Sensor


Key 'sensors' of robot technology
Sensors are the core and main component of robot technology. The robot's sensors correspond to the five human senses. A robot without a sensor is like a metal ball that cannot react to the external environment at all. Conversely, the higher the performance or the more diverse sensors are installed, the more sensitive they can react to various stimuli. The range of awareness of the surrounding situation increases and the speed of reaction increases. In light of the definition of "automatically responding to changes in the external environment," sensors are so important that they are the eyes and ears of the robot.


Key Sensors


  • LiDAR Sensor : LiDAR is the eye of AMR. LiDAR, which stands for "Light Detection and Ranging," has the same meaning as laser radar. Unlike ordinary radars that use radio waves, it is easy to understand when considering a radar that uses light. LiDAR can be used for various purposes, including the distance between a body and a target object, the speed and direction in which it moves, and the temperature measurement. In particular, it is possible to acquire 3D images of space by combining measured geographic information such as GPS with precise drawing of a geographic feature. This has become an indispensable technology for autonomous robots and automobiles.



    •
    Feature Details
    Camera resolution 1920x1080 FHD
    Camera frame rate 33 fps
    Camera angle of view(FOV) 170 °(A)
    Wireless bandwidth 20 MHz
    Wireless transmission speed 58 Mbps
    Wireless transmission Distance 100 m
    Horizontal FOV 0~140 °(A)
    Angular resolution(H) 0.2 °(A)
    Speed of Motion 15 HZ
    Measurement distance 50 m
    Eye-Safety class 1
    Range of motion -40~+85 °(A)
    Vibration test 2/5-50 °(A)
    Drop/Impact test 60 times

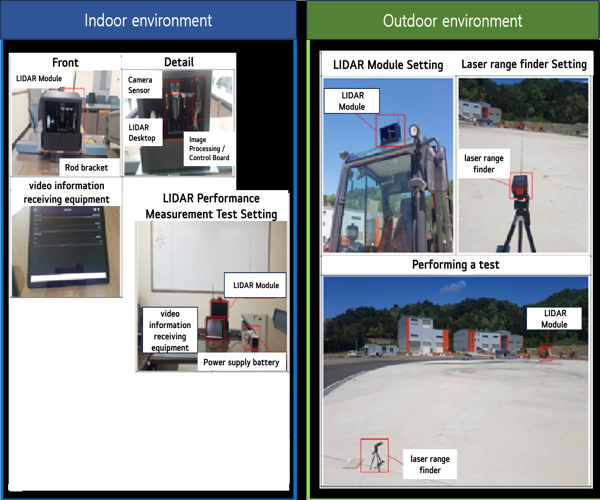

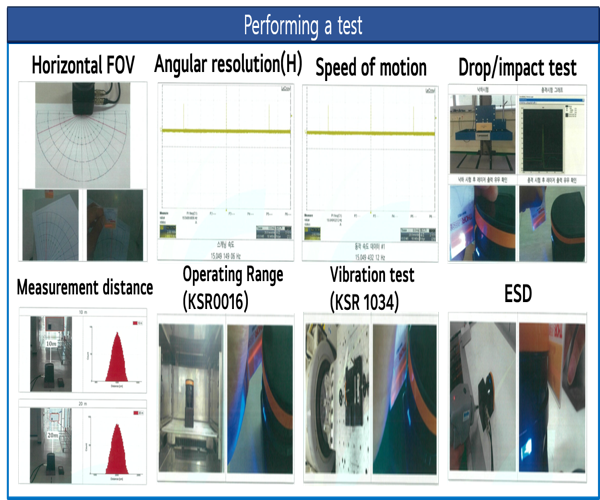

Quantitative Target Test Environment and Method


  • Evaluation test product : Camera-LiDAR fusion products and video information receiving equipment


    • Development Results


  • Integrated Board / AR Disply : Integrated Embedded System Framework / Android AR Display Application for Remote Control
