Technology that connects the world with 3D vision and emotions, ROBOWINK

Grid Buoy

Grid Buoy

  • Grid Buoy Claims Design : Sensor Board, Power Board, Control Board
  • Frame Design : External/Inside/Up/Medium/Lower Frame and Waterproof Enclosure, Power Supply Design
  • Operational Software Design : Ship Interface Standard NMEA Protocol Application Design, UI Design / Motor Drive Operation Control SW Design and Multiple Measurement Algorithm
  • Hydrophone for receiving sonic beacons : Method of attaching to the body of the submerged buoy/Fixing it to the lower part of the buoy using a fixing pole

Key Topics

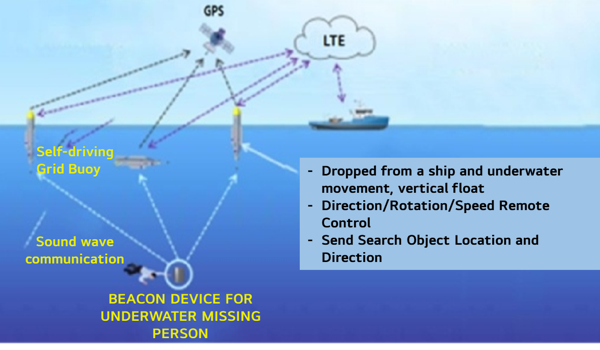

  • Reducing the time to respond to underwater accidents and reducing the cost of search personnel and equipment
  • Self-driving with the connection of underwater ultrasonic communication is expected to reduce long-term missing persons underwater
  • Development of Grid Booy: Operating current 5A - Response time 3 sec / Usage environment - Location search accuracy about 80%


Feature Details
Total Length 2.22 m (7.3 ft)
Cylindrical Diameter 200 mm
Weight Max 70kg (154 lb)
Speed Max 5 kn (About 9.26 km)
Structure Antenna, Up-and-down key(Rudder), Pump JET PROPELLER
